- - - - The rate of energy transfer or the amount of energy transferred per second
      - electrical power depends on

        voltage

        current
      - power is given by the equation

        P=IV

        where

        V=POtential difference measured in volts (V)

        p=power in watts(W)

        I=current measured in Amps (A)
    - - Watts= Joules/second
  - - - The wire breaking means that no more current can pass through it
      - the wire heats up and melts
    - - Fuses can come in a variety of sizes
      - Most common fuse sizes

        13A

        5A

        3A
      - The fuse should always have a current rating that is slightly higher than the current needed by the appliance
      - If the fuse current rating is

        too high

        The circuit won't be stoped in time to prevent all the damage

        Too low

        It will break the circuit, even if an acceptable current is going through
  - - - work done=energy transfered
    - - potential difference/voltage
      - the amount of time the component is used for
      - current
    - - E= P x t

        where

        P= power in watts (W)

        Power can be calculated with

        P=IV

        WHere

        3 more items...

        Power is the rate at which energy is used or transferred.

        t=time in seconds (s)

        E= energy transfer in joules (J)
  - - - Some of that energy is disupated as heat
    - - Electric hob
      - toasters
      - Electric ovens
      - kettles
      - ELectric heaters
- - - - The electrical current is the amount of charge passing through a component each second

        current= charge/time
      - Calculating charge

        charge= current x time

        Q=IxT

        values

        I= current--> amps

        T= time--> Seconds

        Q= charge--> Watts
    - - Current is measured with an ammeter
      - ammeters are connected in series with the other components
  - - - Voltage in energy terms is The energy transferred per unit charge passing between two points
      - If an electrical current passes through a cell they gain energy
      - As electrons move through components in a circuit they loose energy
      - Calculating energy transfer

        Energy transfer= charge x voltage

        E=QV

        values

        Q= charge--> measured in coulombs (C)

        Charge is the amount of electricity carried by particles

        V=voltage--> measured in voltage (V)

        E= energy transferred--> measured in joules (J)
    - - Voltage is measured with a voltmeter
      - A voltmeter is placed in parallel with the component being measured
  - - - The higher the resistance, the lower the current
      - The lower the resistance, the higher the current
      - All electrical components (including wires) have resistance
    - - voltage= resistance x current
      - V= R x I
      - Resistance = voltage/ current
      - values

        I= current--> measured in amps (A)

        R= resistance--> measured in ohms(Ω)

        V= voltage--> measured in volts (V)
- - - - This is because the electrons can only follow one path

        This means that the number of electrons passing through one point is allways the same
      - The current in a series circuit depends on

        the resistance of the components

        Increasing the number of components increases the total resistance

        More resistance results in less current

        the voltage

        INcreasing the voltage increases the current
    - - 2 different components

        Voltage will be lower for the copmonent with less resistance

        Voltage will be higher for the component with higher resistance
      - 2 identical components wil have

        the same voltage

        The voltage of the power supply will be divided equaly for every component
    - - Disadvantages

        Components can't be controlled separately

        If one component breaks, the circuit will stop working
      - Advantages

        fewer wires required

        all components controlled with a single switch
    - - When two or more resistors are connected in series, the total resistance is equal to the sum of their individual resistances
      - R1+R2=R
      - The total voltage is also the sum of the voltages across each of the individual resistors
  - - - branches

        The section fo wires between junctions
      - junctions

        points where two or more wires meet to form a new branch

        Current is always conserved in junctions

        This means the amount of current coming in a junction is the same of the current coming out

        Current is not always split equally

        It will only be split equaly if the components are the same in each branch
    - - This is because currents slipts in junctions

        The electrons have different paths to take
    - - Dsadvantages

        Hard to control voltage between different components

        More wires and more complicated circuit
      - Advantages

        If one component breaks the circuit will continue to work

        Components can be individual controlled

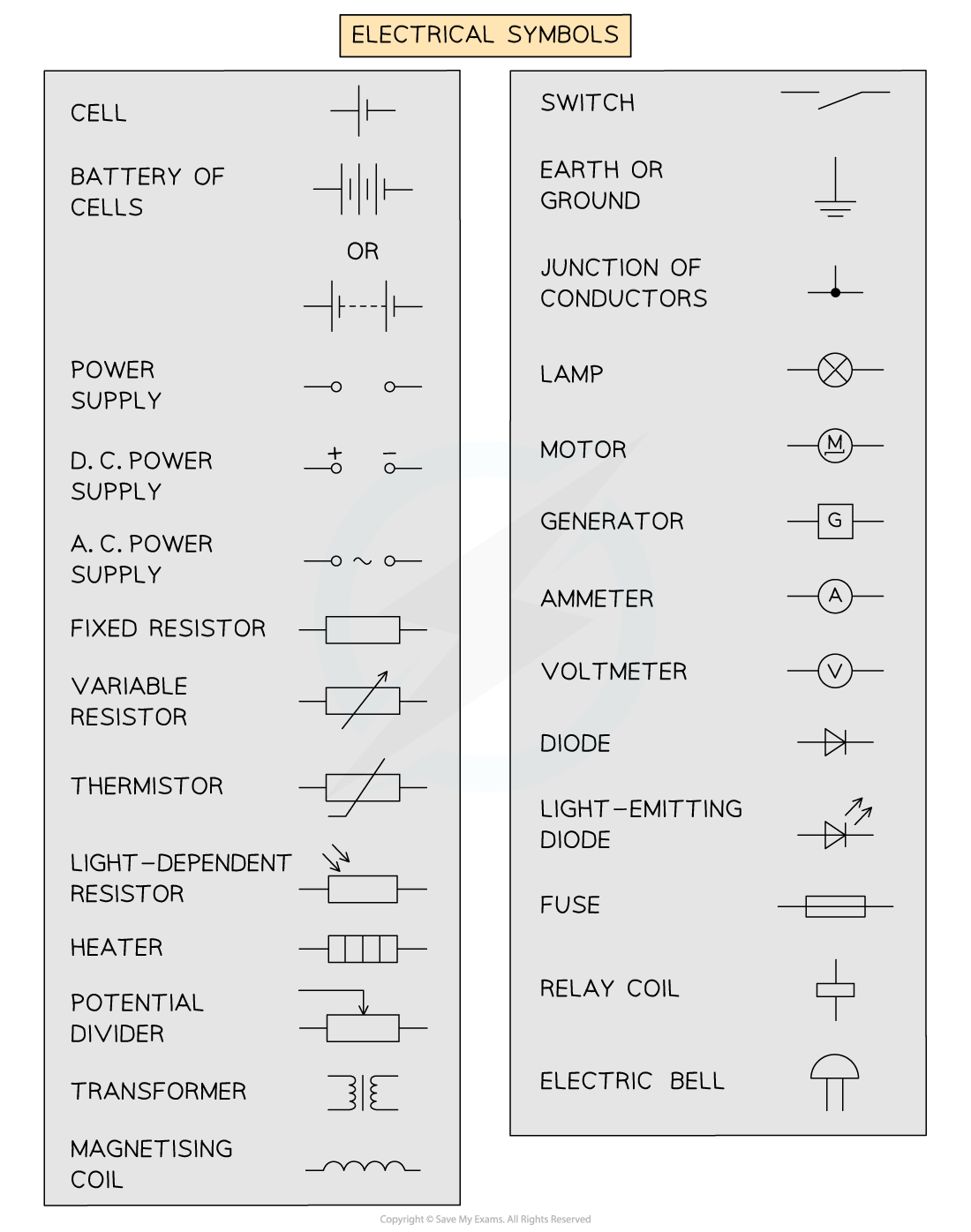

  - - - Thermsistors

        The resistance in a thermsistor depends on its temperature

        If tempreature increases

        The resistance of the thermistor decreases

        If the tempreature decreases

        THe resistance of the thermsistor increases

        Relationship between temperature and resistance

        https://cdn.savemyexams.com/cdn-cgi/image/f=auto,width=1920/https://cdn.savemyexams.com/uploads/2024/07/thermistor-graph.png
      - Light dependent resistor (LDR)

        Resistance depneds on the amount of light detected

        As light intensity increases, the resistance decreases

        As light intensity decreases the resistance increases

        https://cdn.savemyexams.com/cdn-cgi/image/f=auto,width=1920/https://cdn.savemyexams.com/uploads/2024/07/ldr-resistance-light-intensity.png
    - - LED

        Only allow current to flow in one direction
      - Lamps and light-emitting diodes (LEDs) illuminate (light up) when a current flows through them
      - Useful to indicate current in a circuit
- - - - the IV graph is a straight line which passes through the origin
      - Resistance is constant
      - Components with linear graphs

        wires

        fixed resistors.

        A resisteer that has a fixed value
      - The relationship between voltage and current is directly proportional
      - https://cdn.savemyexams.com/cdn-cgi/image/f=auto,width=1920/https://cdn.savemyexams.com/uploads/2021/07/2.1.6-Ohms-Law-Graph.png
    - - the IV graph that is not a straight line
      - Resistance is not constant
      - https://cdn.savemyexams.com/cdn-cgi/image/f=auto,width=1920/https://cdn.savemyexams.com/uploads/2021/07/2.1.6-Linear-Non-linear-elements.png
      - Components with non-linear graphs

        LDR

        diodes

        directs the flow of electricity to one single direction

        IV graph for a filament bulb

        In the oposite direction the diode has a very high resistance, meaning it doesn't let any current through

        Forward bias

        The current goes towards the direction of the arrowhead

        Increase in current and voltage in the right side of the graph

        This shows that resistance is low

        Backward bias

        The current goes to the opposite direction of the arrowhead

        The IV graphs shows a zero reading in current in the left side

        This show that the resistance is very high

        https://cdn.savemyexams.com/cdn-cgi/image/f=auto,width=1920/https://cdn.savemyexams.com/uploads/2021/07/2.1.6-Diode-I-V-graph.png

        Thermsistors

        filament lamps

        IV grpah of a filament bulb

        The relationship between V and I is not directly proportional

        The slope of the graphis not constant, showing that the resistance changes

        As voltage increases

        the resistance increases; the flatter the slope, the higher the resistance

        the current increases at a proportionally slower rate

        https://cdn.savemyexams.com/cdn-cgi/image/f=auto,width=1920/https://cdn.savemyexams.com/uploads/2020/09/9.2.3-Filament-lamp-IV-graph.png

        Resistance increases because

        The higher temperature makes the atoms in the filament vibrate more

        This increases resistance as it is harder for electron to pass through

        Higher currentt causes a higher temperature

        since resistance opposes the current, this causes it to increase at a slower rate
    - - Components needed

        power source

        variable resistor

        to vary the current through the circuit

        wires

        Voltemter

        measure the voltage across the copmonents

        Ammeter

        measure the current going through the components
      - https://cdn.savemyexams.com/cdn-cgi/image/f=auto,width=1920/https://cdn.savemyexams.com/uploads/2021/08/10.2.4-Investigation-of-Current-and-Voltage.png
      - Variebles

        independent

        current

        The variable resistor is used to change the current flowing through the filament lamp / diode

        dependent

        voltage

        The voltmeter is used to measure the voltage across the filament lamp / diode
      - Recording measurements of current and voltage as the current increases enables an IV graph to be plotted for each component
  - - - variable resistors

        Change the resistance depending on the length of the wire

        long wire= more resistance

        Short wire= less resistance
      - fixed resistors

        resistance remains constant
- - - - Damaged insulation

        This means the wire is not protected and if someone touches the wire they could get shocked
      - Overheating of cables

        If a is too small and there is too much of a current this could lead to the wire overheating

        this can cause

        melting of insulation

        explosion o long wires

        fire
      - Damp conditions

        it could conduct electricity either causing a short circuit within a device (which could cause a fire) or posing an electrocution risk
  - - - An insulating material is a material that reduces or prevents the transmission of heat or sound or electricity.
      - A wire is made of copper to conduct electricity

        To improve safety an insulating material is put around the copper wire
      - Double insulation

        WHen there are 2 layers of insulating material around a wire

        Double insulation means that an erath wire is not needed as the wire can't touch the metal casing
    - - Electrical apliances normally have metal cases

        THis is a risk as if the wire touches the metal case it will become electrified and would electrocute anyone that touches the metal case

        An earthing wire is used to prevent this
      - The earthing wire provides a low resistance path through the ground

        This means if there is a fault the current will travel through the ground instead of the person

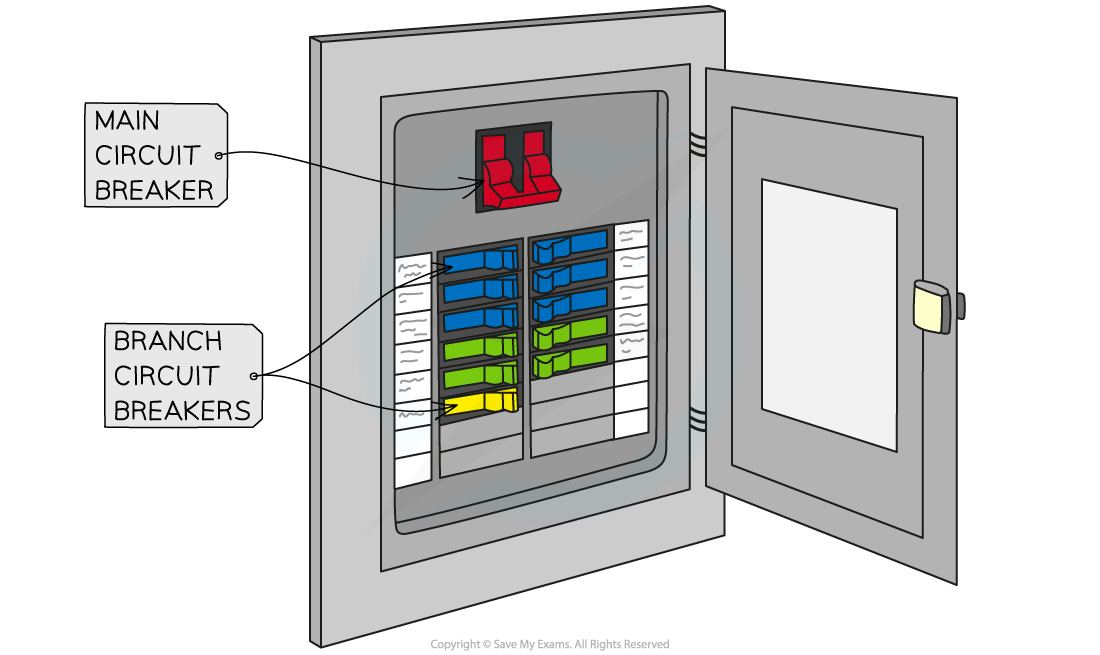

    - - fuses and circuit breakers stop the current if the current is too big
      - https://cdn.savemyexams.com/cdn-cgi/image/f=auto,width=1920/https://cdn.savemyexams.com/uploads/2021/08/2.3.3-Circuit-Breaker.png
      - A circuit break is better than a fuse because

        It works much faster

        it doesn't melt or break meaning it can be reused
- - - - When the terminal changes the current changes direction
    - - https://cdn.savemyexams.com/cdn-cgi/image/f=auto,width=1920/https://cdn.savemyexams.com/uploads/2020/02/ac-dc.png
      - current in the y axis
      - time in the x axis
  - - - THe current travels from the positive terminal to the negative terminal
